Sizes (Wheel Diameters)
9.84 to 39.37(250 mm to 1,000 mm)
Performance
Air Flow to 235,294 CFM (400,000m3/hour)
Total Pressure to 10 inches w.g. (2500 Pa)
Characteristic：
Single inlet single width (SISW) centrifugal fans.
Backward inclined blades impeller.
Belt drive transmission.
Material:
- Carbon Steel
- Stainless steel Alloy SS 304
- Stainless steel Alloy SS 316
- Plastic materials
- FRP
Typical Applications
- Ventilation systems
- Conditioning
- Drying processes
- Cooling processes
- Mechanical draught
- Fumes/gas elimination
- Humidity regulation
Contact Us
|

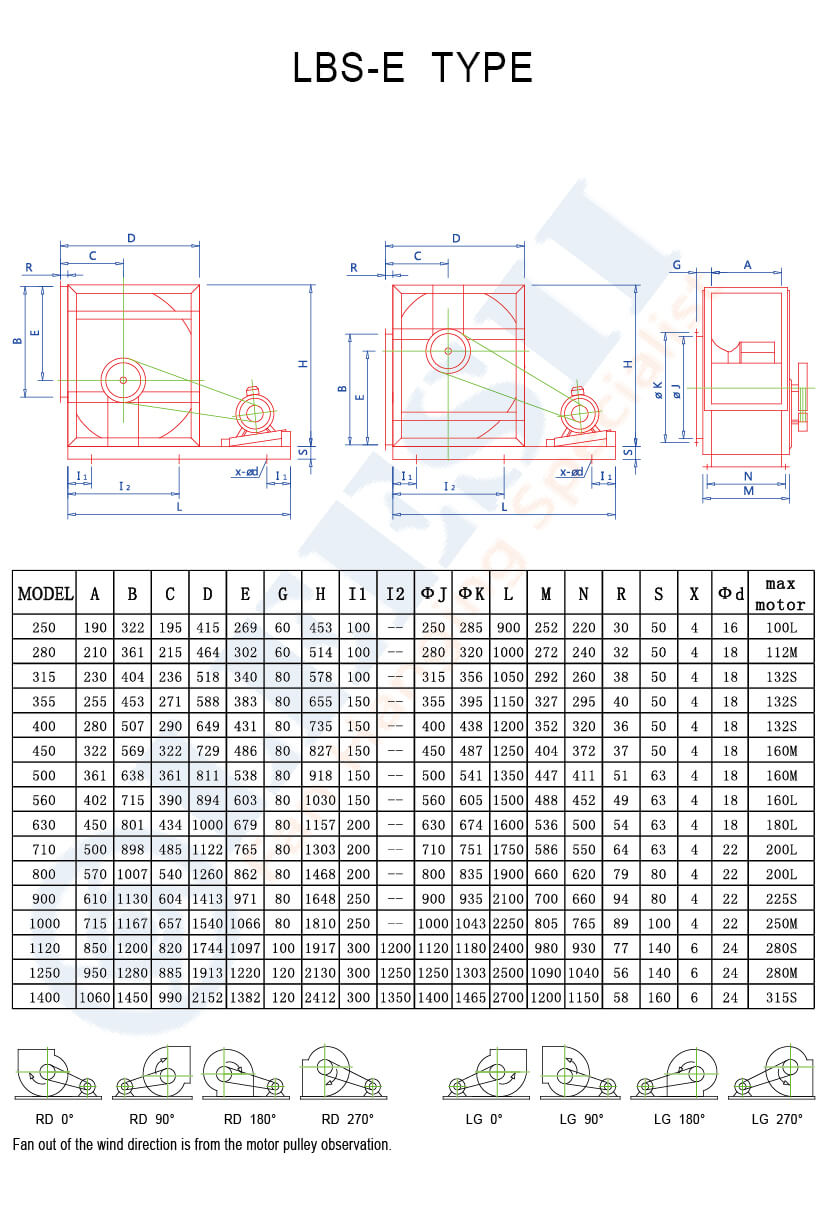

LBS-E-250 |
LBS-E-450 | LBS-E-800 | LBS-E-1400 |
|
LBS-E-280 |
LBS-E-500 | LBS-E-900 | |
|
LBS-E-315 |
LBS-E-560 | LBS-E-1000 | |
|
LBS-E-355 |
LBS-E-630 | LBS-E-1120 | |
|
LBS-E-400 |
LBS-E-710 | LBS-E-1250 |
Wheel:
Wheel dynamically balancing accuracy class with reference of ISO1940 &G4.5 class standard. The balancing accuracy can reach to G2.0
Inlet Cone:
Deep spun cone, aerodynamically designed for smooth air entry into the wheel.
Scrolls:
The scroll is manufactured in galvanized sheet steel with spot welding make the housing more solid and surface more smooth.
Shaft:
High precision,anti-corrosion varnish coated shaft assure the fan work well.
Bearing:
Lubricated bearing for lifetime and maintenance-free.
Special Wheel
Custom Painting
Drain Cap
Inspection Doors
Special Steel
Damper
Inlet Guard
Belt Guard
Inlet Cone
Outlet Flange
Inlet Vane Control
Outlet Guard
Inlet Flange
Mounting Feet
Steel Outlet Cone
Spark Resistance
